DESCRIPTION

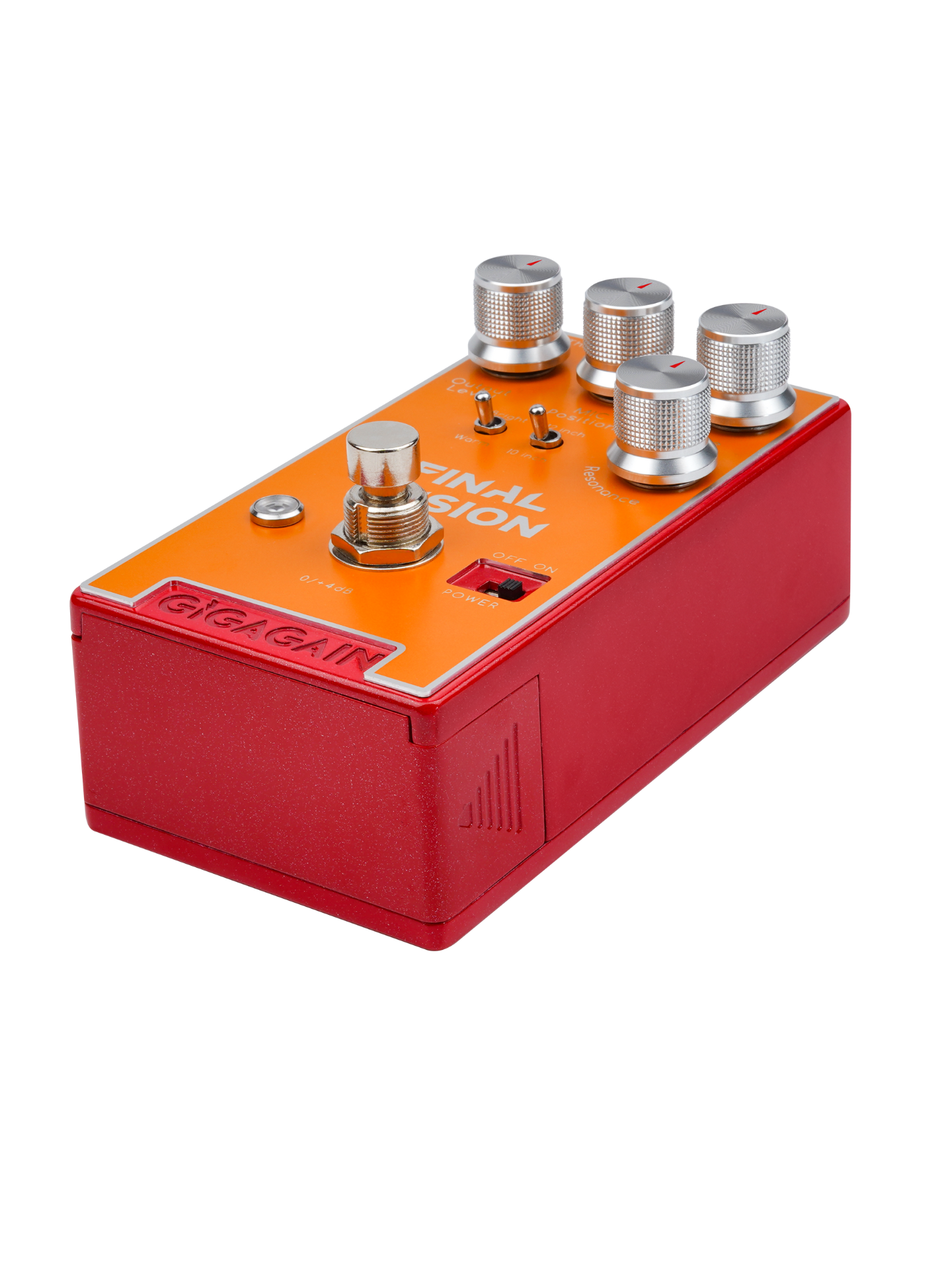

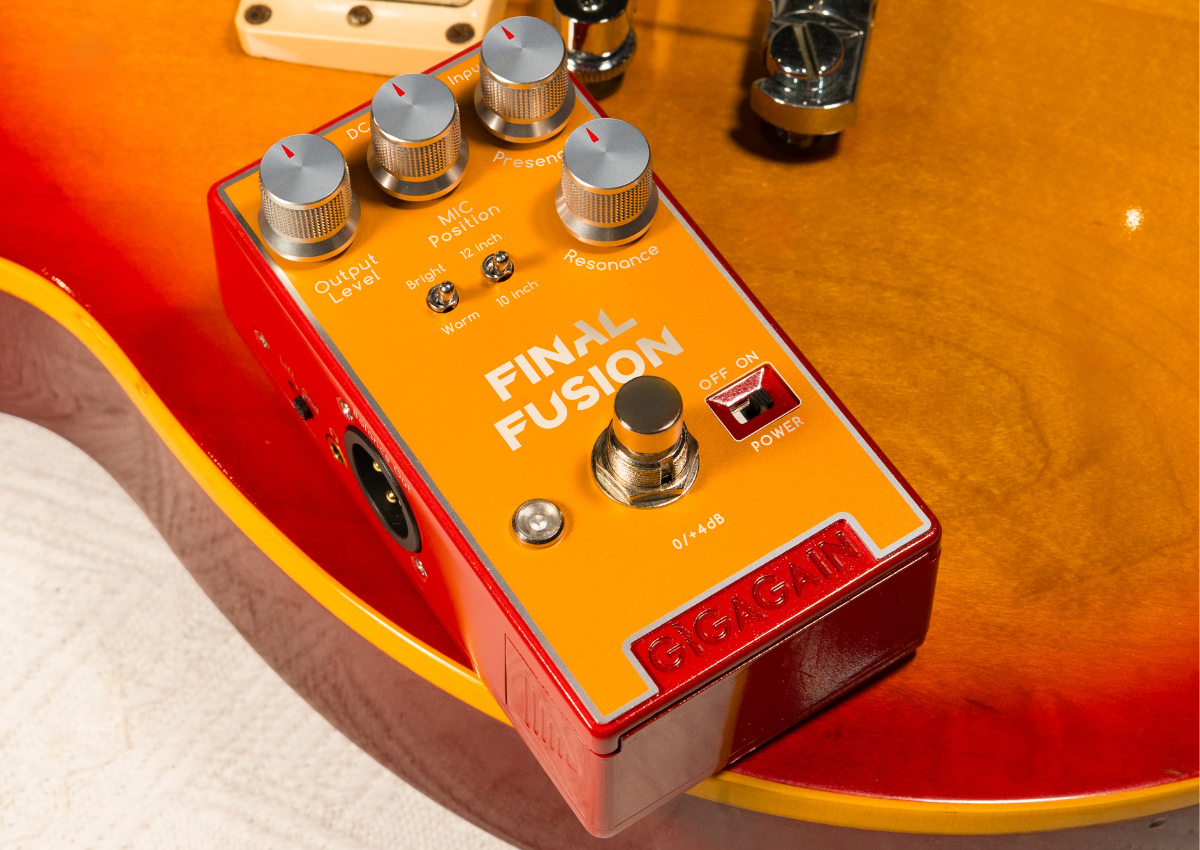

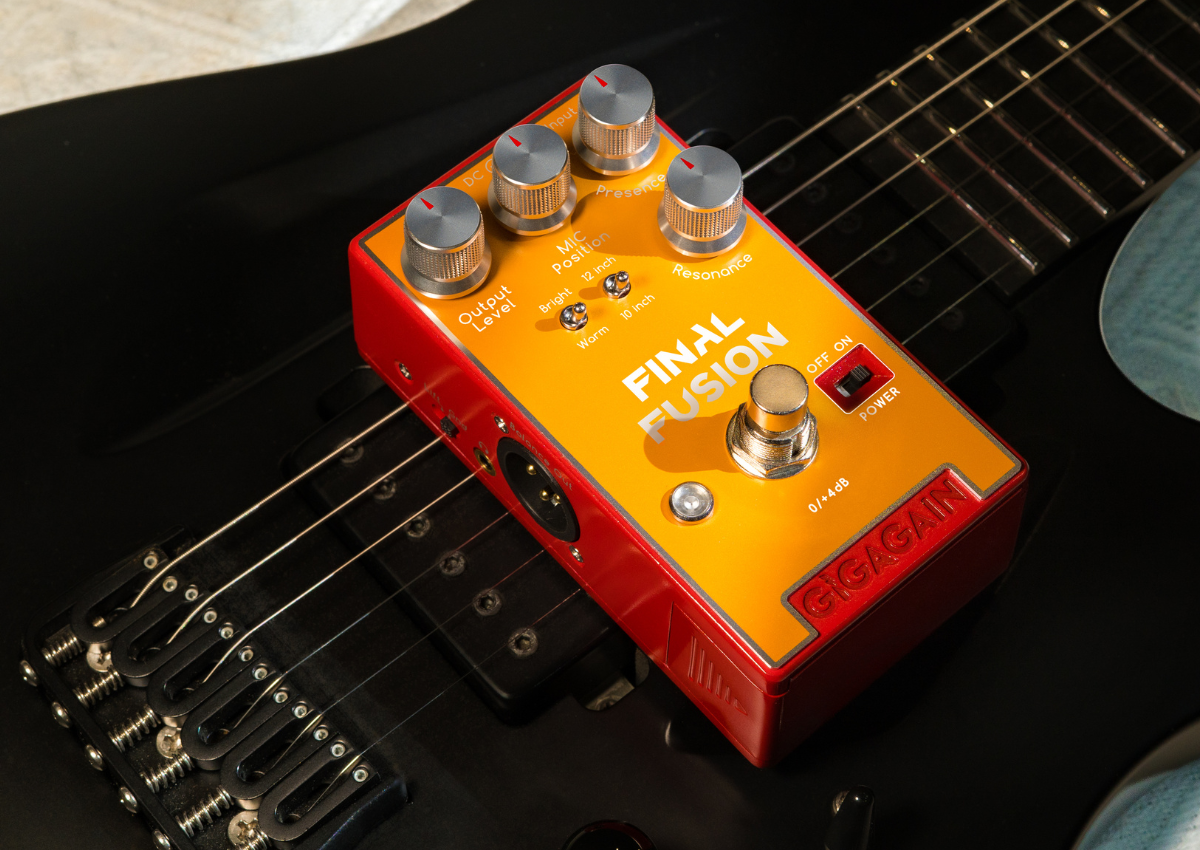

Final Fusion is a cab sim active DI box. Compared to digital IR cabinet simulator, Final Fusion, an analog DI box, is more user-friendly, it delivers an instantaneous response. A DI box core function is transferring signal, it converts high impedance, unbalanced instrument (such as electric guitar, bass) signals to low-impedance, balanced signals; while a cab sim recreates the sound of a guitar or bass cabinet by direct connecting to a mixing console or other scenarios. In addition to the two speaker options (“12 inch” / “10 inch”) and “MIC Position” knob, we add some special functions Final Fusion to suit guitarists habits, such as, “Presence” and “Resonance” knobs, they commonly send on guitar amps, and the +4dB boost footswitch to slightly increase volume during live performances.
FEATURES
MIC Position knob
· Simulates the tone variation of microphones in different positions;
· Warm / Bright toggle switch, quickly adjust your tone;
· 10 inch / 12 inch toggle switch, simulates 10 inch and 12 inch speaker sound characteristics;
Presence / Resonance knob
· It lets you adjust the presence and resonance, just like on a tube amp;
· Presence knob: controls the clarity and penetration of the high frequency.
· Resonance knob: controls the punch and firmness of the low frequency.

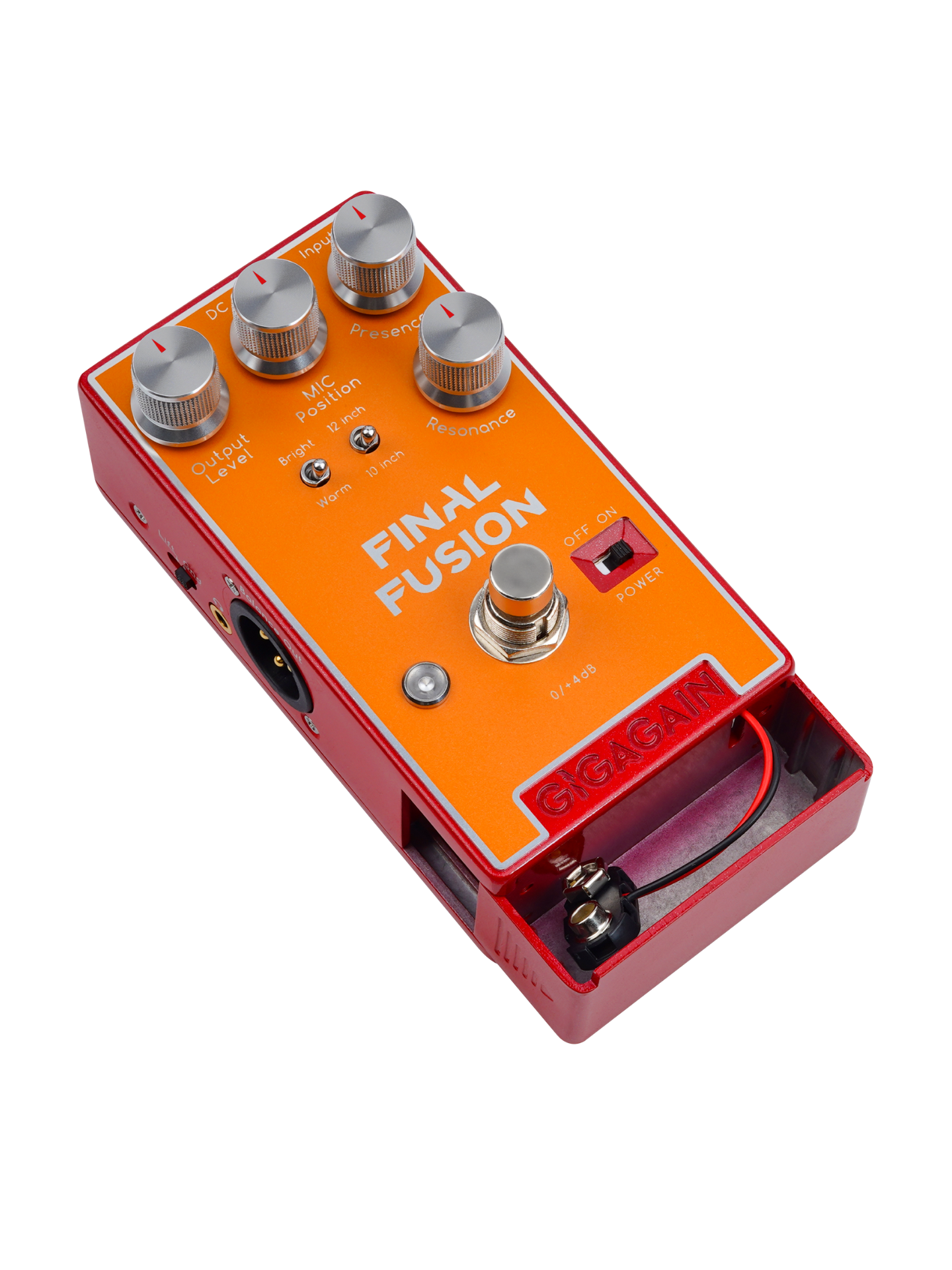

Power Switch
· Toggle to “ON”, the pedal starts working;
· Toggle to “OFF”, power is completely cut off, avoids battery draining, protect the battery and components.
Foot switch
· Gives you extra 4dB volume boost;
· Green light on, 0dB boost;
· Orange light on, 4dB boost;

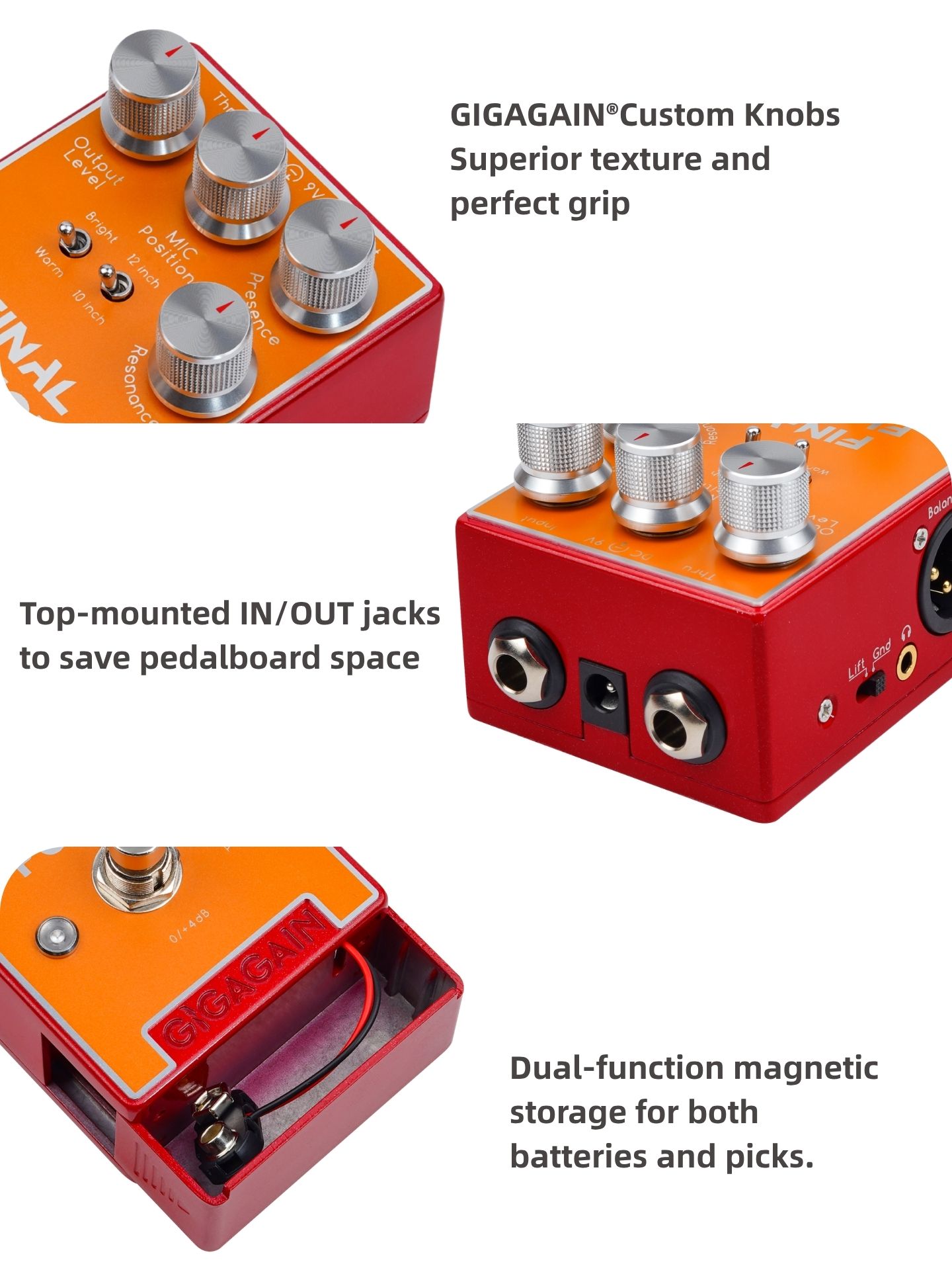

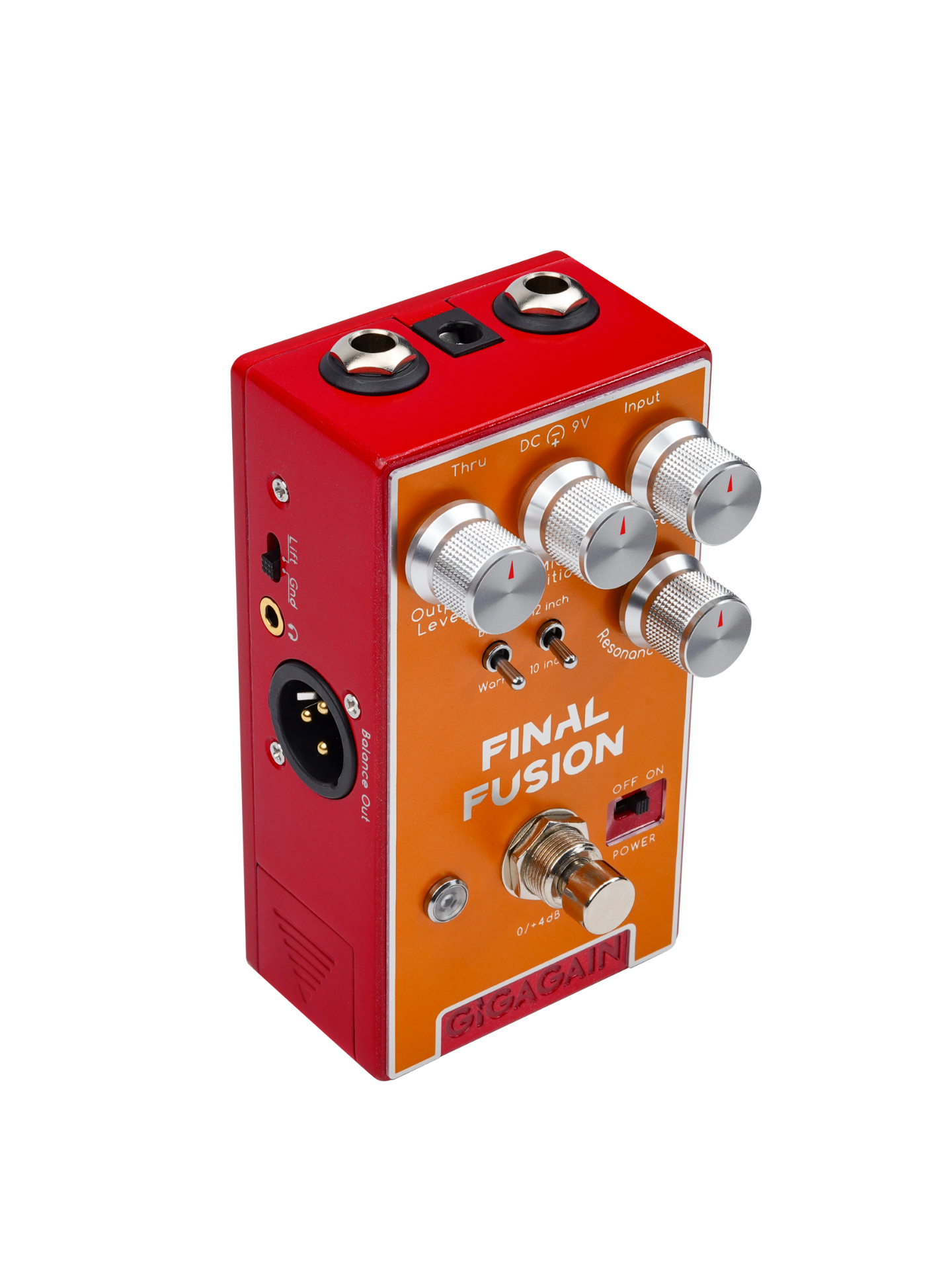

Thru Out parallel output jack
· Gives you an extra output signal not going through cab sim for your instrument amp.

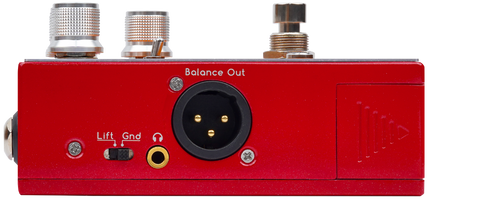

Balance Out Jack
· Connect Final Fusion to mixing console via an XLR cable to output balance signal, in this way, the sound degradation and poor frequency response etc. issues caused by impedance mismatch are solved and when high-impedance instruments like guitar connect to mixing console.
GND Lift switch
· Don't let ground loop hum ruin your live performance — simply flip the Ground Lift switch to eliminate it.
Headphone Jack
· works well for backstage performance warmup and studio practice
SPECIFICATIONS
Pedal Categories：Active DI box
Power：DC 9V (positive in the center, neg)
Bypass Mode：Buffer bypass
Housing Material：Aluminum alloy housing
Weight: 320g
Circuit Type：Analog operation
Plug Type：6.35 mm TS jack, XLR cable, TS cable
Size：Approx. 114.50×63×32.50 mm
