Pure Two-Stage Switching Power Supply Topology Technology

The key path to achieving high-performance "true isolation", ensuring quiet and reliable power operation

Facing unstable stage power, ordinary power supplies cause audio equipment like effects pedals to interfere with each other.

True isolated independent power provides an independent "soundproof cabin" for each pedal,

ensuring pure tone and no crosstalk when mixing digital and analog effects, eliminating ground interference and howling for a more worry-free performance.

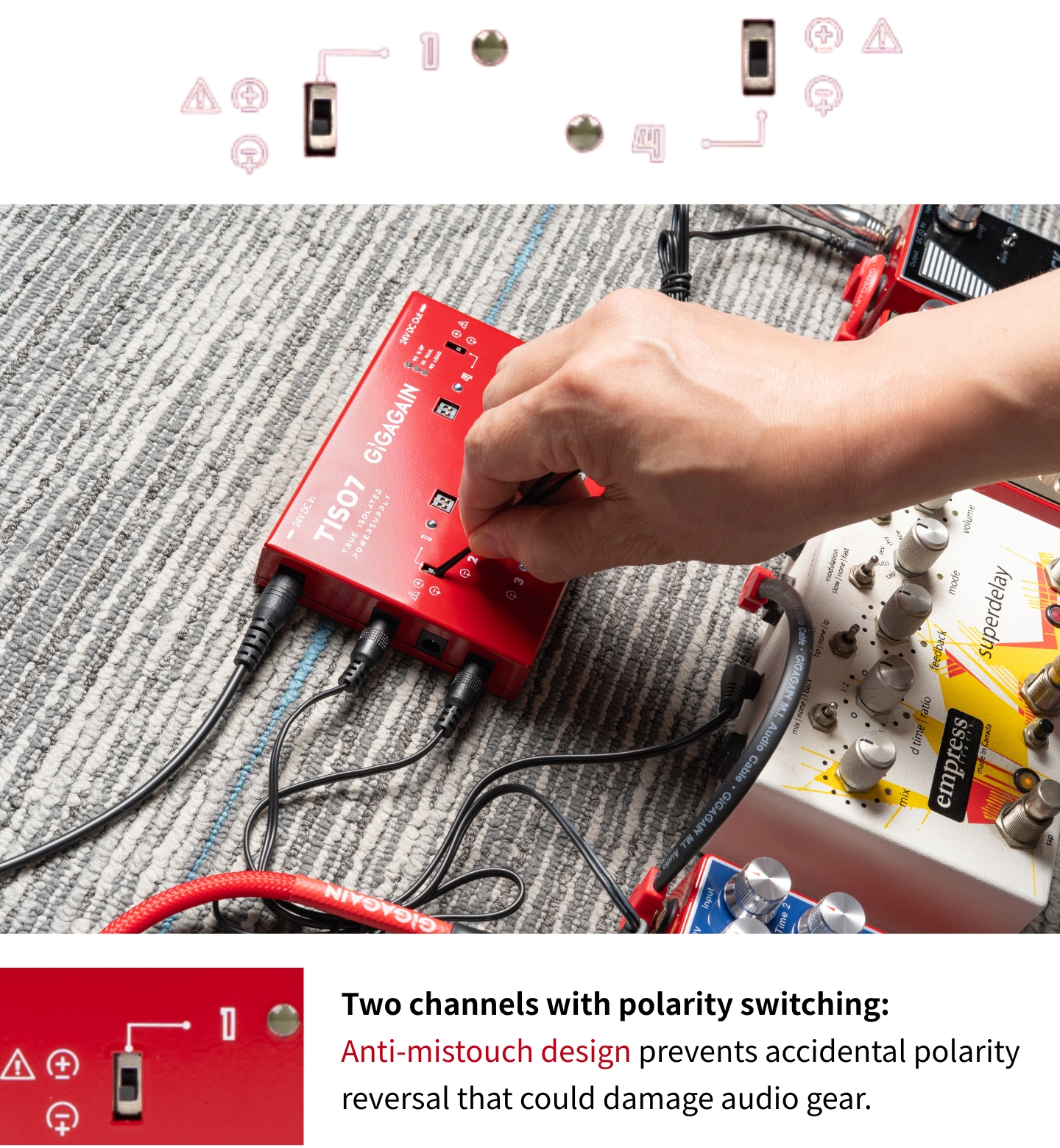

Two channels with switchable polarity

Channels 1 and 4 feature switchable polarity, eliminating the hassle of searching for reverse polarity adapter cables. Switch as needed without worry.

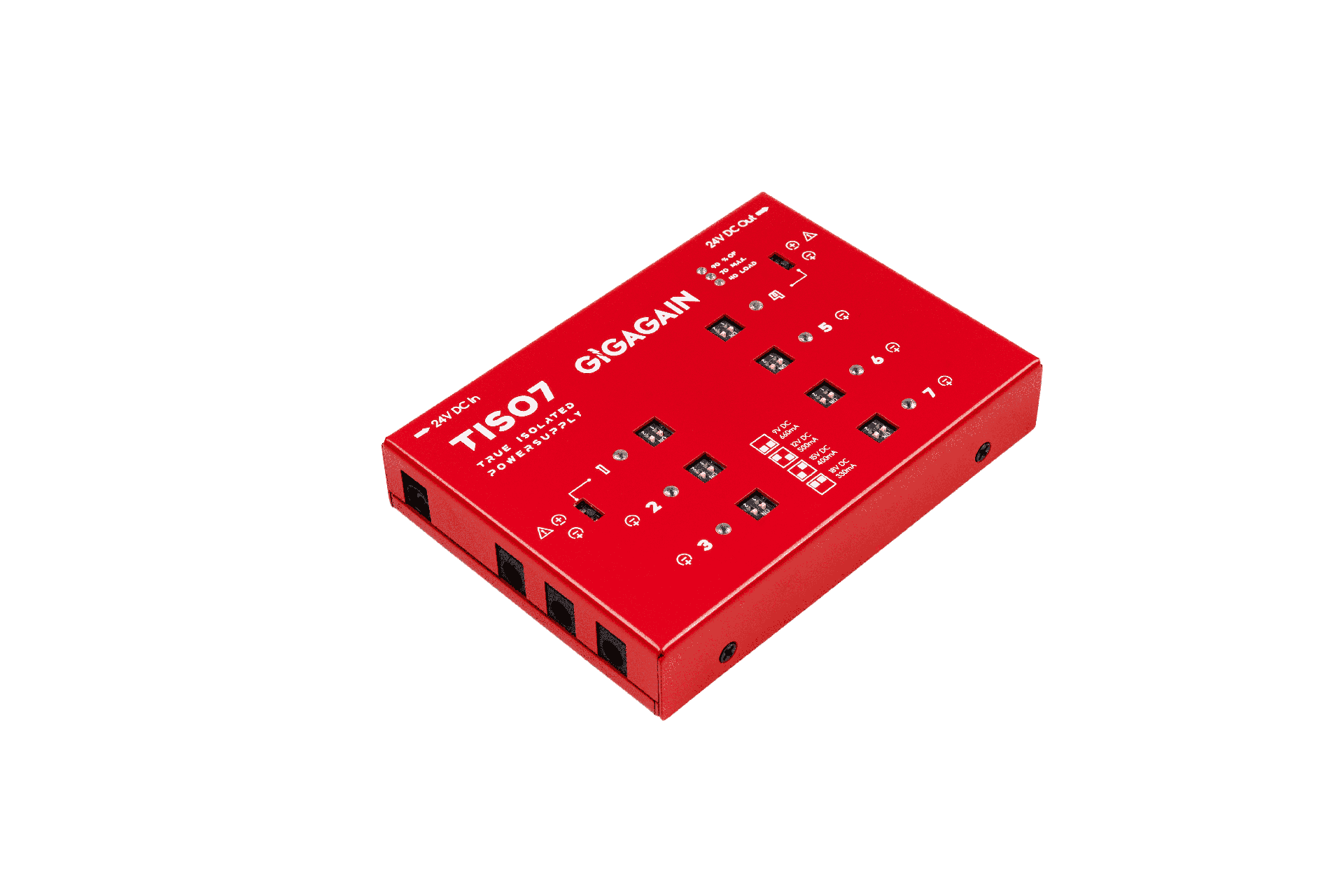

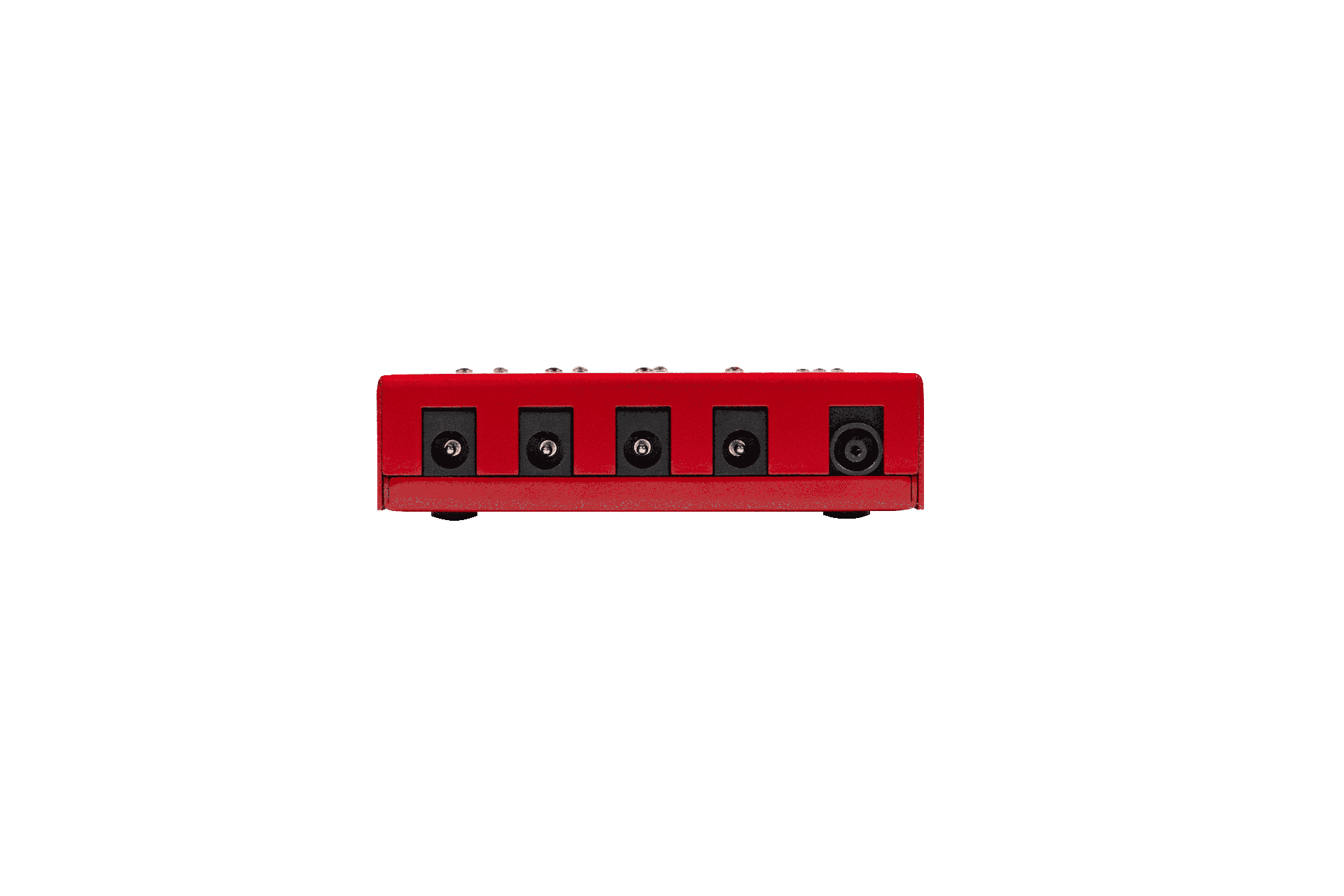

7-Channel True Isolated DC Output

6W per channel, easily powers high-current digital pedals

Each effects pedal is like having its own dedicated power supply, saying goodbye to annoying crosstalk and hum.

6W per channel — up to 660mA high current, capable of driving flagship digital equipment. High-end digital pedals

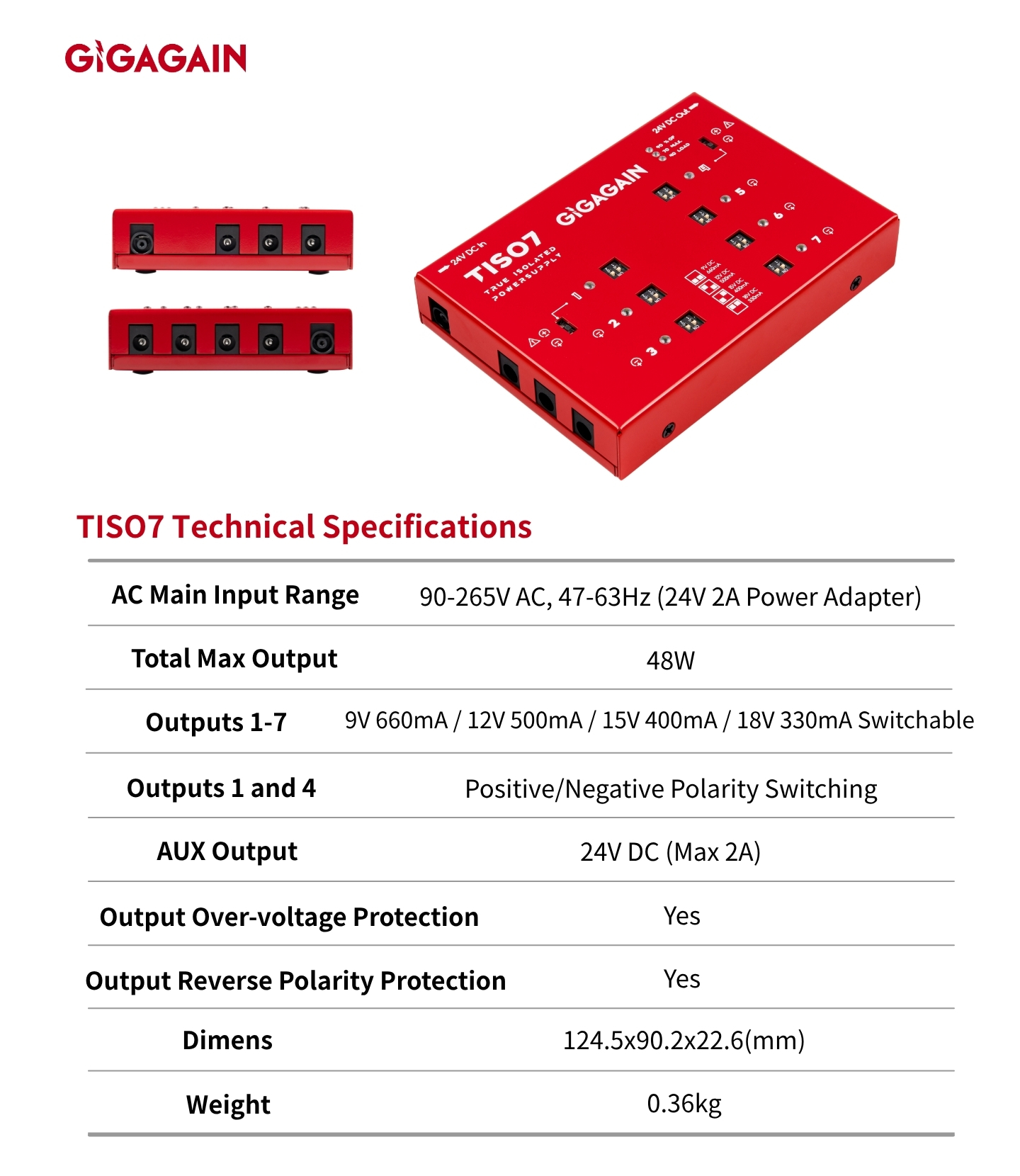

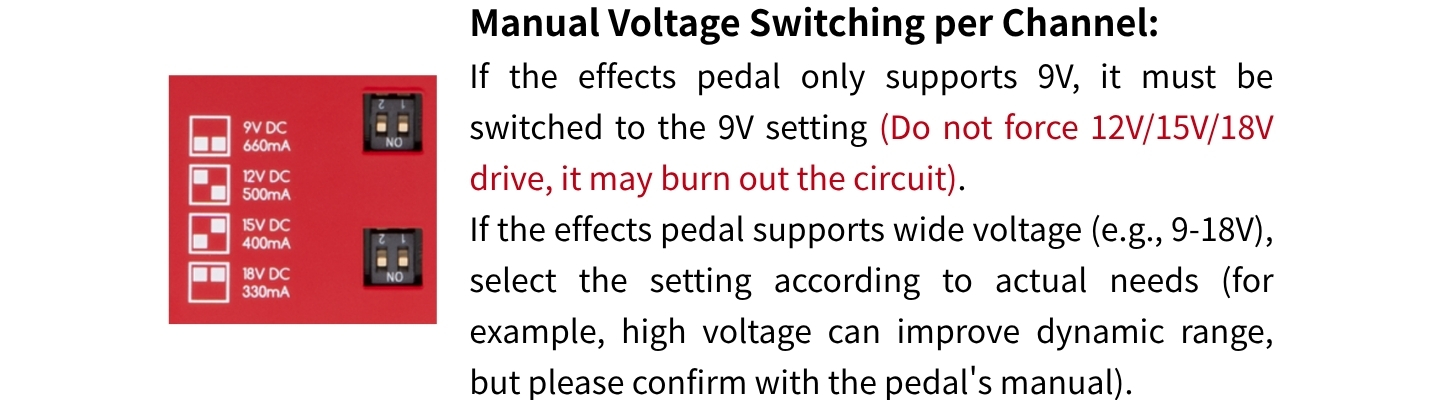

Switchable Voltage per Channel

Corresponding Current: 9V 660mA / 12V 500mA / 15V 400mA / 18V 330mA

Even if all 7 pedals are turned on during a performance (even high-power consumption multi-effects units), each channel still stably outputs the rated current,

no need to worry about insufficient power supply. The power supply is 24V DC daisy-chain output, with a maximum current of 2000mA.

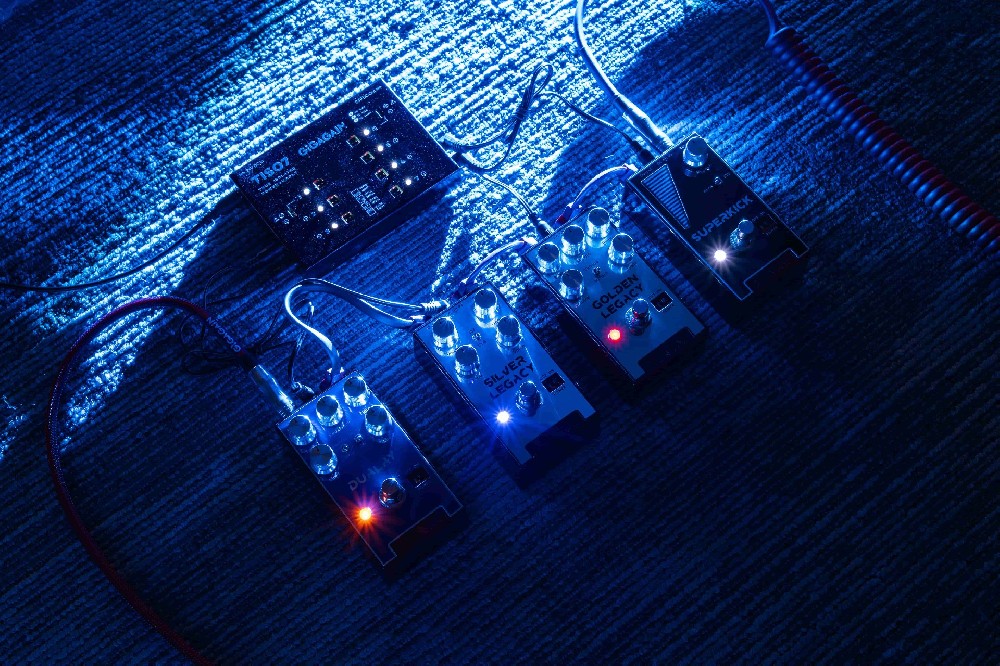

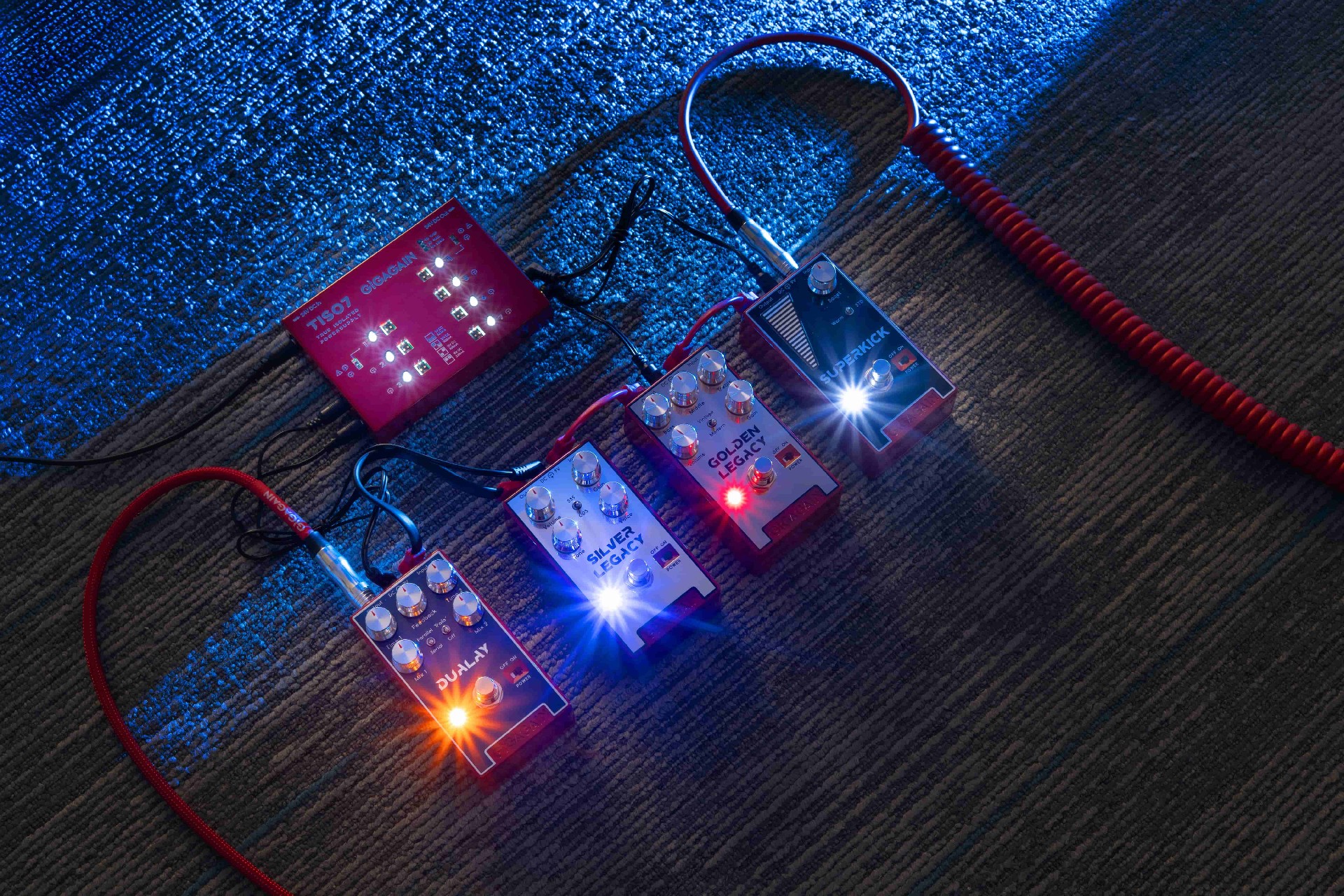

All outputs are equipped with independent power limit indicator lights

Each channel on the power supply has "independent monitoring". Once the current exceeds the limit,

there will be an immediate "light alarm" (flashing white light) to tell you exactly which channel has a problem.

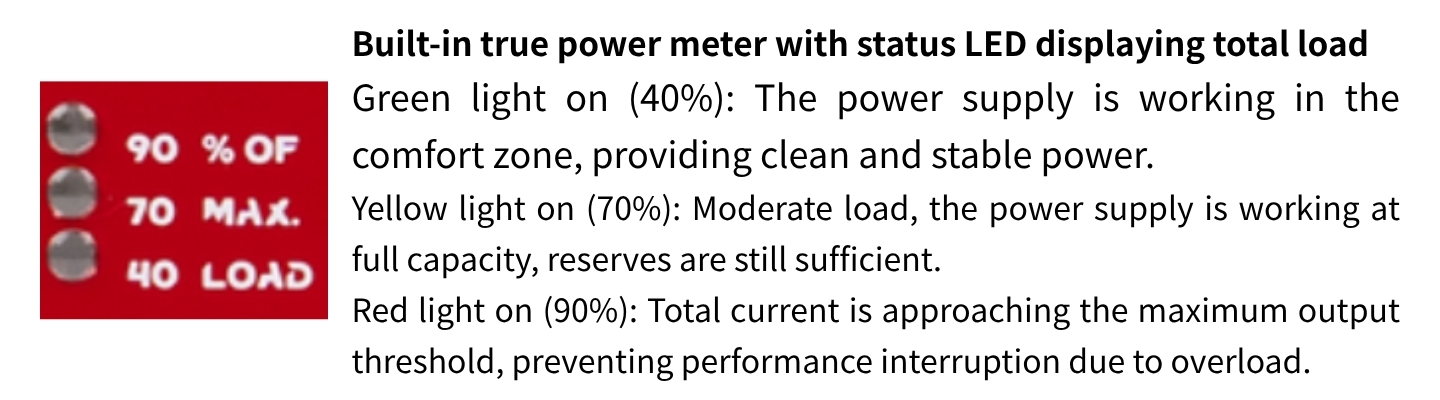

The three-color light lets you anticipate risks in advance—seeing a red light means too many devices are plugged in.

Unplugging one in advance can avoid performance accidents; this is "prevention before it happens".
